PRODUCTS
Sirolaser Laser Systems
High Product Quality, Professional Services
FIBERSCAN - FIBERSCAN EKO

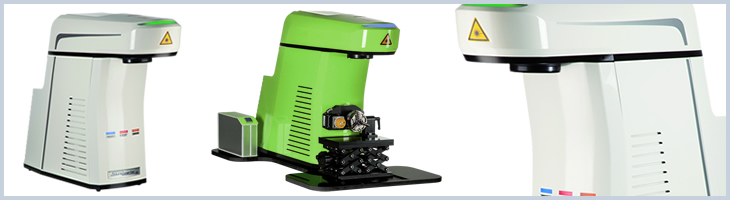

SIROLASER FIBERSCAN / EKO
When you compare Fiberscan SQ with traditional diode laser technology, Fiberscan Works faster in engraving.
New developement HQ Fiberscan even enables faster and deeper engraving. So it gives best quality. Fiberscan HQ has prooved itself for high quaility and fastness.
| FIBERSCAN | TECHNICAL INFO | |
|---|---|---|
| Power | FiberScan SQ: 10W 20W - FiberScan HQ: 20W 30W 50W | |
| Wave size | 1064 nm ± 5nm | |
| Working mode | cw/gepulst | |
| Frequency | 1 - 500 kHz | |
| Mode | En Düşük Mode / M2 ≤ 2 | |
| Rythm | Ayarlanabilir, 9 - 250 ns | |
| Focusing | Entegre | |
| Laser class | 4, Opsiyonel: 1.Sınıf Lazer Koruma | |
| Scanning speed | < 10 m /sec | |
| Cooling | Kontrol ünitesinde entegre hava soğutma | |
| Working temp | 15°C - 35°C | |
| Sizes (L x B x H) | 650 mm x 225 mm x 460 mm - Zazer kafa: 595 mm x 202 mm x 140 mm | |
| Weight | Besleme Ünitesi: 26 kg | |
| Cooling | Lazer Kafa: 9 kg |
| FIBERSCAN EKO | TECHNICAL INFO | TECHNICAL INFO | |
|---|---|---|---|
| Power | 10 W | 20 W | |
| Laser type | Yb:Fiber Lazer (Q-switched) | Yb:Fiber Lazer (Q-switched) | |
| Laser quality | M2≤ 1,4 | M2≤ 1,8 | |
| Max power | 3,8 kW | 5,6 kW | |
| Shot energy | 0,6 mJ | 1 mJ | |
| Shot size | 1064 ± 4 nm | 1064 ± 4 nm | |
| Shot repeat | 25 - 50 kHz | 30 - 60 kHz | |
| Adjustable shot length | 80-140 nsec (Bağımlı Frekans) | 80-140 nsec (Bağımlı Frekans) | |
| Fiber cable length | 3 m | 3 m | |
| Laser class | 4, opsiyonel 1 | 4, opsiyonel 1 | |
| Marking area | opsiyonel: 60 x 60; 110 x 110; 180 x 180 mm | opsiyonel: 60 x 60; 110 x 110; 180 x 180 mm | |
| Input | max. 200 W | max. 250 W | |
| Connected load | 85-240VAC / 10A / 50-60Hz | 85-240VAC / 10A / 50-60Hz | |
| Weight | 8 kg / 27 kg | 8 kg / 27 kg | |
| Size | 595 x 202 x 140 / 650 x 225 x 460 mm | 595 x 202 x 140 / 650 x 225 x 460 mm | |
| Interface | USB 2.0, SPS-Interface | USB 2.0, SPS-Interface |
